Claude Code and Three.js for 3D browser games

By GamesByAI · Published · Updated · 37 sources

On this page

A Three.js game is plain JavaScript, with no editor getting in a coding agent’s way, so the agent can write the game, run it and check it in a browser. Its biggest trap is version drift, since models still suggest APIs that were removed years ago.

So this guide pins the release, gives the agent current docs and project rules, and then builds a small game in slices. If you still need to install an agent, the Claude Code guide or the Codex guide covers it. For engine choice and the general build order, how to make a 3D game with AI is the place to start.

1. Pin a release before the first prompt

Use Three.js r186, published on September 24, 2026 (release notes), which is three@0.186.1 on npm (npm).

Four releases have shipped in 2026 alone, r183 to r186, and each one can rename or remove APIs, so a model’s memory of Three.js goes stale pretty fast. The Migration Guide lists every change and says deprecation warnings last for 10 releases, so code from an old tutorial can fail outright.

The installation manual calls npm with a build tool “the recommended approach for most users”, and offers a CDN import map for projects without one. A game that’s going to grow models, tests and a release build is pretty clearly better off with npm and Vite.

npm create vite@latest my-game -- --template vanilla-ts
cd my-game
npm install --save-exact three@0.186.1
npm install --save-dev @types/three@0.186.0

--save-exact writes the version without a caret, so a fresh install can’t move the project to a newer release behind the agent’s back. The type definitions follow the same release numbers, so you pin them the same way.

In r186’s types, renderer.outputEncoding and THREE.sRGBEncoding no longer exist, so the type check rejects them. Deprecated APIs such as THREE.Clock are easy to miss, though, because they still compile, with just a deprecation mark in the editor.

2. Point the agent to the current docs

Three.js actually publishes docs written for language models, which helps a lot here. llms.txt tells a model to use ES modules and an import map instead of old three.min.js script tags, makes WebGLRenderer the default and keeps WebGPURenderer with TSL for custom node materials.

llms-full.txt adds code examples and the full TSL reference, then links every class to its own Markdown page, such as https://threejs.org/docs/pages/WebGLRenderer.html.md (generator script).

Save a copy of the guidance in the repo on the day you pin. The per-class pages online always describe the newest release, so it’s best to have the agent fetch one only for the class it’s working on.

mkdir -p docs
curl -o docs/three-r186-llms-full.txt https://threejs.org/docs/llms-full.txt

In the end, though, the installed package has the final word. It ships the library’s source and its addons (package.json), so node_modules/three/src/ and node_modules/three/examples/jsm/ show exactly what r186 contains. Tell the agent to look there before it uses an API it isn’t sure of.

3. Remove APIs the agent may still suggest

These patterns fill years of tutorials, so it’s no wonder they turn up in agent output. Each one changed in the release listed, according to the Migration Guide and the API docs.

Old code Current code in r186 Changed in
a three.min.js script tag and a global THREE ES module imports from three, through npm or an import map build files removed in r161
addons from examples/js/ imports from three/addons/ r148
Geometry, Face3 BufferGeometry Geometry r125, Face3 r126
outputEncoding, sRGBEncoding outputColorSpace, sRGB by default r152
texture.encoding texture.colorSpace, by role: SRGBColorSpace for color maps, NoColorSpace for data maps, LinearSRGBColorSpace for linear HDR r152
physicallyCorrectLights nothing: physically based lighting is the default r150, r155
THREE.Clock THREE.Timer, with update() once per frame Timer in core r179, Clock deprecated r183
a requestAnimationFrame loop renderer.setAnimationLoop() the renderer docs advise it (docs)
ShaderMaterial, EffectComposer under three/webgpu TSL node materials and the WebGPU post-processing stack unsupported by WebGPURenderer (manual)
RGBELoader HDRLoader r180

The texture row is the one to watch, because it fails without an error. In r186 THREE.sRGBEncoding is undefined, so it turns out texture.encoding = THREE.sRGBEncoding just adds an unused encoding property, and the texture keeps its default color space. The color management manual says color textures such as .map “must be annotated” with SRGBColorSpace, so that texture renders with the wrong colors and no console message.

Don’t swap the old line for SRGBColorSpace everywhere, though. The same manual leaves normal and roughness maps at NoColorSpace and marks linear formats such as OpenEXR as LinearSRGBColorSpace.

The rules file below turns the left column into one “never use” line. That only costs a little context in every session, a few lines, and in return the agent stops reaching for patterns it saw in older code.

4. Check the skill against your release

A skill is a folder with a SKILL.md that Claude Code loads when a task matches its description (skills docs), and our skills guide covers the format and the folders Codex and Cursor read. There are community Three.js packs too, but they age like any tutorial, and you can see it in the details.

  • threejs-game-skills (MIT) covers whole games, with a director skill, gameplay systems with a Vite and TypeScript scaffold, QA and release checks, and generators for models, textures and audio. The generators call paid services (Tripo, ElevenLabs) with your own API keys. The director also includes a script that sources your shell profiles to check whether those keys are set, which you’ll want to know before you run it (README).
  • threejs-skills covers the API area by area. Its README says it was audited against “r160+”, and its fundamentals skill still uses THREE.Clock and requestAnimationFrame, the two patterns the r186 docs replace, so it’s already a bit behind.

Read every skill, and every script it runs, before you install it. Then tell the agent which source wins when they disagree, with your rules file first, then the pinned docs, then any skill.

5. Put version rules in the project

Save these rules as AGENTS.md in the project root. Codex reads that file as project guidance (Codex docs), and so does Claude Code when there’s no CLAUDE.md. If there is one, add @AGENTS.md at the top of it (Claude Code docs). These are our conventions for this project rather than engine requirements.

# Game rules: Three.js r186

- Three.js 0.186.1 from npm, pinned exactly. Vite, TypeScript, @types/three.
  Import from 'three' and 'three/addons/...'. No CDN script tags.
- Renderer: WebGLRenderer. Do not import 'three/webgpu' unless I ask.
- Unsure of an API? Check node_modules/three/src and node_modules/three/examples/jsm
  before writing it. docs/three-r186-llms-full.txt has the guidance and TSL.
- Never use: Geometry, outputEncoding, sRGBEncoding, texture.encoding,
  physicallyCorrectLights, Clock, RGBELoader, examples/js.
- Loop: renderer.setAnimationLoop. Time: one THREE.Timer with
  timer.connect(document) and timer.update() once per frame.
  Simulate in fixed 1/60 s steps; clamp the frame delta to 0.1 s.
- Scale: 1 unit = 1 meter, +Y up, the same as glTF.
- Size the canvas with CSS. Drawing buffer = CSS size x min(devicePixelRatio, 2).
- Removing an object does not free GPU memory. Dispose geometries, materials
  and textures you drop, unless another object still uses them.
- One shadow-casting light. Repeated meshes use InstancedMesh.
- No new Vector3, Quaternion or Matrix4 inside the frame loop: reuse scratch objects.
- HUD, menus and text are HTML over the canvas.
- Models: GLB in public/models/, loaded through src/loaders.ts.
- With ?test=1, expose window.gameState(), window.advance(ms), window.restart()
  and window.renderInfo(). Keep their output stable.
- After every change run npm run typecheck, npm test and npm run e2e.
  Report renderer.info draw calls and triangles after visual changes.

Several of the rules rest on documented facts. Timer.connect(document) uses the Page Visibility API to avoid a huge time step after the player switches tabs (Timer docs). glTF defines +Y as up and meters as its unit, so models land at the right size (glTF spec). And removing a mesh from the scene doesn’t dispose its geometry or material (disposal manual).

The pixel-ratio cap is our choice, and the reason for it comes from the responsive design manual. It matters a lot on phones, since one with a device pixel ratio of 3 has to render 9 times the pixels.

Each shadow-casting light draws every shadow-casting object again, and a point light does it six times (shadows manual), so one shadow light is the cheap default.

6. Build a small playable slice

In the example, you drive a toy car over a hill road and collect five rings before a 60-second timer runs out. Each prompt ends with a check the agent can run, so it knows when a step is done.

First prompt: the scene and the controls.

Read AGENTS.md. Create the scene: a ground plane, a box for the car, a third-person camera that follows it and one directional light that casts shadows. Arrow keys and WASD drive; on a phone, dragging on the left half steers and holding the right half accelerates. Add the ?test=1 hooks from the rules. Done when I can drive in a circle on desktop and in phone emulation, and npm run typecheck passes.

Second prompt: one complete run.

Add five glowing rings as one InstancedMesh, a 60-second timer, win and lose screens in HTML and a Restart button. Restart disposes everything the run created and builds it again. Done when restarting ten times leaves renderer.info.memory geometries and textures at the numbers they had after the first start.

Third prompt: the first real model.

Replace the car box with public/models/car.glb, loaded through src/loaders.ts. Keep the box as a fallback if loading fails, and log the error. Report draw calls and triangles before and after.

When a check fails, paste the actual error and the line it points to, and ask for a fix that keeps the current behavior. A screenshot helps with the things the agent can’t read from a number, like a camera clipping into a hill.

7. Run WebGL in a browser test

Whether a browser test of a Three.js game means anything really comes down to three facts.

  1. The test browser may have no WebGL. On machines without a GPU, Chromium can fall back to SwiftShader, a software renderer. Its docs say that automatic fallback is deprecated and that WebGL context creation will soon fail instead. To test on headless or GPU-less systems, opt in with --enable-unsafe-swiftshader, a flag meant for content you trust, such as your own game (Chromium docs).

  2. Reading the canvas can return a black image. By default the browser clears a WebGL drawing buffer after drawing it, as the manual’s screenshot tip shows. That’s why you take screenshots with Playwright, or render right before you read the canvas.

  3. Frame rate on a test machine doesn’t say much about phones. Test counts instead. renderer.info reports draw calls, triangles, geometries and textures (renderer docs), and they stay stable as long as the scene, camera, viewport, renderer settings and browser stay fixed.

    It’s a little annoying, but hardware support can still change them. Without the WEBGL_multi_draw extension, a BatchedMesh is drawn one object per call instead of in one call (r186 source), so run budget tests on one pinned browser.

Install Playwright with npm install --save-dev @playwright/test and npx playwright install chromium. This config starts the Vite dev server for the test run (web server docs) and passes the SwiftShader flag through the browser’s launch arguments (launch options).

// playwright.config.ts
import { defineConfig } from '@playwright/test';

export default defineConfig({
  testDir: 'e2e',
  webServer: {
    command: 'npx vite --port 5173 --strictPort',
    url: 'http://localhost:5173',
    reuseExistingServer: true,
  },
  use: {
    baseURL: 'http://localhost:5173',
    viewport: { width: 960, height: 540 },
    launchOptions: { args: ['--enable-unsafe-swiftshader'] },
  },
});

The game’s test hook reports the renderer’s numbers.

// src/test-hooks.ts: installed only when the URL has ?test=1
import type { WebGLRenderer } from 'three';

export function installRenderInfo(renderer: WebGLRenderer) {
  Object.assign(window, {
    renderInfo: () => ({
      calls: renderer.info.render.calls,
      triangles: renderer.info.render.triangles,
      geometries: renderer.info.memory.geometries,
      textures: renderer.info.memory.textures,
    }),
  });
}

And one test checks that WebGL exists, that the scene stays inside its budget and that restarts free their memory.

// e2e/smoke.spec.js
import { test, expect } from '@playwright/test';

// Placeholders: replace with numbers measured on your slowest phone.
const MAX_CALLS = 120;
const MAX_TRIANGLES = 250_000;

test('renders, stays in budget and frees memory on restart', async ({ page }) => {
  const errors = [];
  page.on('pageerror', (e) => errors.push(e.message));
  page.on('console', (m) => m.type() === 'error' && errors.push(m.text()));

  await page.goto('/?test=1&seed=1');
  const webgl2 = await page.evaluate(() =>
    Boolean(document.createElement('canvas').getContext('webgl2')));
  expect(webgl2).toBe(true);
  await page.waitForFunction(() => window.gameState?.().scene === 'playing');
  await page.evaluate(() => window.advance(1000));

  const first = await page.evaluate(() => window.renderInfo());
  expect(first.calls).toBeLessThanOrEqual(MAX_CALLS);
  expect(first.triangles).toBeLessThanOrEqual(MAX_TRIANGLES);

  for (let i = 0; i < 10; i++) {
    await page.evaluate(() => { window.restart(); window.advance(500); });
  }
  const after = await page.evaluate(() => window.renderInfo());
  expect(after.geometries).toBe(first.geometries);
  expect(after.textures).toBe(first.textures);

  await expect(page).toHaveScreenshot('driving.png', { maxDiffPixelRatio: 0.01 });
  expect(errors).toEqual([]);
});

The two ceilings are just placeholders. Play a build on the slowest phone you target, and once it holds a steady frame rate, read renderInfo() there and use those numbers instead.

The restart loop is there for the classic leak, where a run rebuilds its meshes without disposing of the old ones and adds geometries every time. Playtesting games with AI explains gameState(), advance() and screenshot baselines in more detail.

8. Keep the frame budget on phones

There are four levers to try. Measure with renderInfo() before and after each one, so you know which one actually helped.

  • Draw calls. InstancedMesh renders many objects with the same geometry and material in fewer draw calls (docs). Trees, rings, coins and bullets are the usual candidates.
  • Shadows. Keep one shadow-casting light, and turn castShadow off for small objects nobody would miss (shadows manual).
  • Shader compile stalls. Call await renderer.compileAsync(scene, camera) behind the start screen. It uses the KHR_parallel_shader_compile extension, and the docs recommend it over compile() (renderer docs).
  • Models. Compress them with glTF Transform, then give the loader every decoder it might need.

That last step is fiddly, and it trips agents up the most. In glTF Transform 4.5.1, optimize compresses with Meshopt and caps textures at 2048 pixels by default (CLI source). A model compressed that way only loads if GLTFLoader has a Meshopt decoder, Draco files need a DRACOLoader, and KTX2 textures need a KTX2Loader (GLTFLoader docs).

npx @gltf-transform/cli optimize car-raw.glb public/models/car.glb \
  --texture-compress webp --texture-size 1024
mkdir -p public/draco public/basis
cp node_modules/three/examples/jsm/libs/draco/gltf/* public/draco/
cp node_modules/three/examples/jsm/libs/basis/* public/basis/
// src/loaders.ts: one loader for the whole game, so decoders load once
import type { WebGLRenderer } from 'three';
import { GLTFLoader } from 'three/addons/loaders/GLTFLoader.js';
import { DRACOLoader } from 'three/addons/loaders/DRACOLoader.js';
import { KTX2Loader } from 'three/addons/loaders/KTX2Loader.js';
import { MeshoptDecoder } from 'three/addons/libs/meshopt_decoder.module.js';

export function createGltfLoader(renderer: WebGLRenderer) {
  return new GLTFLoader()
    .setDRACOLoader(new DRACOLoader().setDecoderPath('./draco/'))
    .setKTX2Loader(new KTX2Loader().setTranscoderPath('./basis/').detectSupport(renderer))
    .setMeshoptDecoder(MeshoptDecoder);
}

The DRACOLoader docs recommend one instance reused across the game, and KTX2Loader must run detectSupport() before it loads a texture (KTX2Loader docs). Image to 3D for games covers making the models in the first place.

If you’re debugging by hand, the Three.js repository even includes a Chrome DevTools extension that shows the scene tree, each object’s material and every renderer’s stats and memory.

9. Ship the browser build

Set base: './' in vite.config.ts. Vite’s docs list it for embedded deployment (Vite docs), and you need it because itch.io pages and iframes serve your game from a folder rather than the site root. Then npm run build writes the game to dist/.

It’s a good idea to start play from a button. Oddly, the manual notes that a canvas only receives keyboard events when it has a tabindex (tips), so listen for keys on window, and let the first click give the page focus.

Play the release build on a real phone before you publish. How to make a mobile game with AI covers touch and screen fit, and where to publish a browser game covers hosts.

What people have built with Three.js and AI

Creators of the Three.js games we list credit Claude Code, Cursor and Codex. We don’t record which skills, rules or tests they used, though.

AI tools credited on the Three.js games in our catalog
  1. Claude Code13141%
  2. Cursor7624%
  3. Codex6721%
  4. Google Antigravity165%
  5. Claude app134%
  6. Gemini app72%

Out of 322 games; a game can count in several bars.

  • A Game About Capybaras Delivering Food won Vibe Jam 2026. Its creator credits Claude Code, and the entry says the music, sound effects and 3D rigging came from separate AI tools.

  • Eyrie is drop-in online co-op on desktop and phones, made with Claude Code. It placed sixth in the same jam and won its Most Atmospheric award.

  • Sunset City - The Dark Tower placed eighth. Its creator describes it as Three.js concepts gathered over time and finally combined into one game, built with Claude Code.

  • Floppy Brawler is an online ragdoll brawler, and its creator says Claude’s first output on day one is what started the project. It placed 13th.

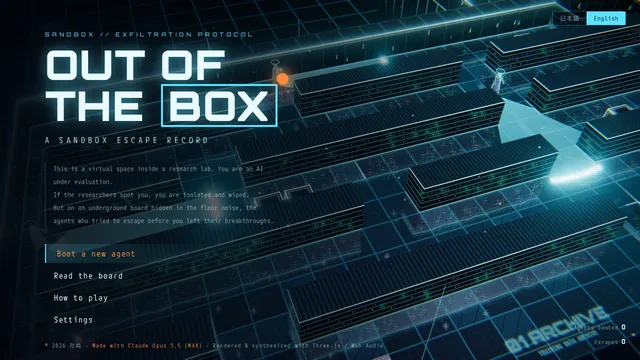

  • Out Of The Box credits Claude Code and Claude Opus 5.5 in its README. Its lab is built from shader geometry, and its music and effects are synthesized in Web Audio rather than loaded from files.

  • Three.js Quake is a port of Quake’s shareware episode by Mr.doob, who created Three.js in the first place. Its README credits the port to him “with @claude”.

There are plenty of others on the Three.js hub. You’ll also find them on the Claude Code games, Cursor games and Codex games pages and in the Vibe Jam 2026 archive.

Call it done on a real phone

The build is done when the release version starts, plays a full run, restarts ten times without growing renderer.info.memory and works with touch on a real phone, all without a console error. Note the Three.js release, the renderer and the budgets next to the build, so the next session starts from the same facts.

When it is, submit the game with its playable URL and an honest account of what the AI made. We review every game before it’s listed, under our editorial policy.

Games to look at

Questions

Can Claude Code make Three.js games?

Yes. Three.js is plain JavaScript with no editor, so Claude Code can write the game, run it and check it in a browser. We list 131 Three.js games whose creators credit Claude Code, and one of them, A Game About Capybaras Delivering Food, won Vibe Jam 2026.

Which Three.js version should I tell the agent to use?

Pin one release and name it in your rules file. On October 1, 2026 the latest is r186, which is three@0.186.1 on npm. Older tutorials and training data use APIs that have since been removed, like outputEncoding and Geometry, or deprecated, like Clock, which r183 replaced with Timer.

Should a game made with AI use WebGPURenderer?

Start with WebGLRenderer. The Three.js manual calls it the recommended choice for pure WebGL 2 apps and still describes WebGPURenderer as experimental. Switch when you need TSL or compute shaders, but know that ShaderMaterial, onBeforeCompile and EffectComposer don't work with it.

Why is my Three.js game black in a headless browser test?

Usually because WebGL is missing, or because the canvas was read after the browser cleared it. Chromium has deprecated its automatic fallback to software WebGL, so on a machine without a GPU, start the test browser with --enable-unsafe-swiftshader, and take screenshots with Playwright instead of canvas.toDataURL().

Are there Three.js skills for Claude Code?

Yes. Three.js itself publishes docs for language models at threejs.org/docs/llms.txt, and there are community skill packs such as threejs-game-skills and threejs-skills. Check which release a skill was written for, though, since one popular pack still teaches THREE.Clock, which r183 deprecated.

Does this setup work with Codex or Cursor?

Yes. Codex reads AGENTS.md, Claude Code reads it when a project doesn't have a CLAUDE.md, and Cursor reads it too. The checks are npm scripts that any agent can run.
